Svomto supplies the Eckert Zircon Extreme heavy-duty cutting machine in Australia, with installation, training and service from Brisbane.
About the Zircon Extreme

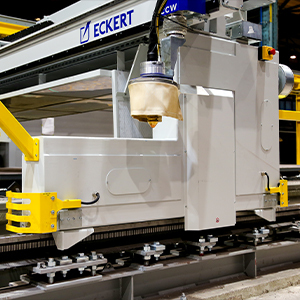

Zircon Extreme is built for heavy industry and continuous 24/7 operation in four shifts. It keeps high precision and repeatability under heavy load, including when cutting hot material.
Wiring and documentation are to a high standard, so your own maintenance staff can service the machine.
Key features
- Designed for 24/7 operation.
- High precision and consistent cut quality under heavy load.

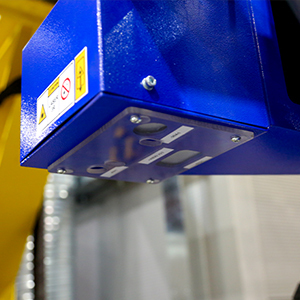

- Positioning camera and sheet temperature sensor that compensates for thermal expansion.
- Active cooling inside and below the portal.

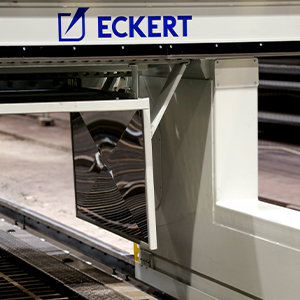

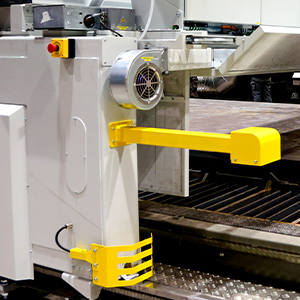

- Heat shields, flame-resistant bellows and splash guards.
- High safety standards for operators.
Specifications
| Model | Zircon |
| Drives | Serwo AC |
| Cutting width | 2 000-7 000 mm |
| Basic working length | from1500 mm |
| Positioning speed | 25000 mm/min |
| Cutting thickness | up to 300 mm |
| Cutting quality | DIN-EN ISO 9013 |
| Positioning accuracy | DIN-EN 28206 |
| Hypertherm | Max. piercing | Max. from the edge |
| Powermax 45 SYNC | 12 mm | 29 mm |
| Powermax 65 SYNC | 16 mm | 32 mm |
| Powermax 85 SYNC | 20 mm | 38 mm |
| Powermax 105 SYNC | 22 mm | 50 mm |
| Powermax 125 | 25 mm | 57 mm |
| MaxPRO 200 | 32 mm | 75 mm |
| XPR 170 | 40 mm | 60 mm |
| XPR 300 | 50 mm | 80 mm |
| XPR 460 | 64 mm | 102 mm |
| HPR 400 XD | 50 mm | 80 mm |
| HPR 800 XD | 50 mm | 80 mm |
| Kjellberg | Max. piercing | Max. from the edge |
| CutFire 100i | 20 mm | 40 mm |
| K200 | 30 mm | 60 mm |
| HiFocus 161i Neo | 30 mm | 50 mm |
| HiFocus 280i Neo | 40 mm | 70 mm |
| HiFocus 360i Neo | 50 mm | 80 mm |
| HiFocus 440i Neo | 50 mm | 120 mm |
| HiFocus 600i Neo | 80 mm | 160 mm |
| SmartFocus 130 | 25 mm | 40 mm |
| SmartFocus 170 | 30 mm | 50 mm |
| SmartFocus 200 | 30 mm | 60 mm |
| SmartFocus 300 | 40 mm | 80 mm |
| SmartFocus 400 | 50 mm | 100 mm |
| Q1500 | 30 mm | 60 mm |
| Q3000 | 50 mm | 80 mm |
| Q4500 | 50 mm | 120 mm |
| Thermal Dynamics | Max. piercing | Max. from the edge |
| UltraCut 130 XT | 25 mm | 40 mm |
| UltraCut 200 XT | 40 mm | 65 mm |
| UltraCut 300 XT | 45 mm | 75 mm |
| UltraCut 400 XT | 50 mm | 90 mm |
Gallery
What we do
- Supply and delivery of the machine.
- Installation and commissioning on site.
- Training for your operators.
- Service, maintenance and spare parts from our Brisbane team.
Ask about the Zircon Extreme
Contact us for a quote, availability and delivery times.
