We offer LVD press brakes tools for both – the old system (classic) and LVD-W. Old LVD systems and Heavy Duty are available as special tools.
We supply punches, dies, adapters, holders with a good selection of standard types and possibility to make any special tools under request of the customer including the length of 6000-8000 mm in one piece.
All tools use standard clamping pins or safety buttons.
Standard sizes:
508 mm solid piece.

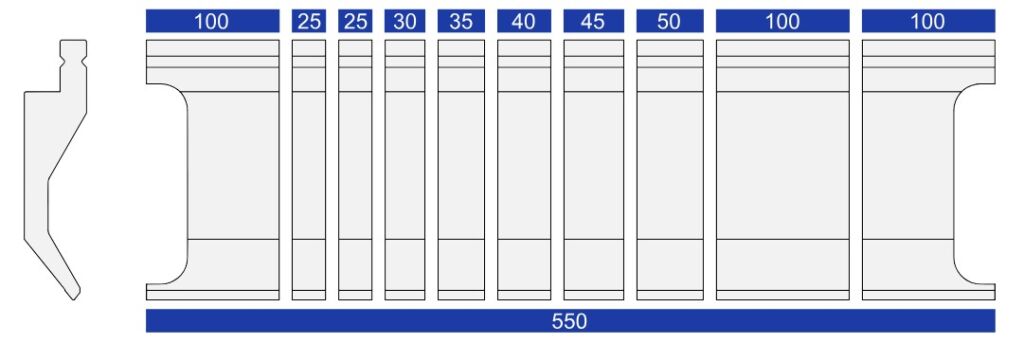

550 mm sectioned / segmented set (for punches: 100 mm horn left + 25 mm + 25 mm + 30 mm + 35 mm + 40 mm + 45 mm + 50 mm + 100 mm + 100 mm horn right)

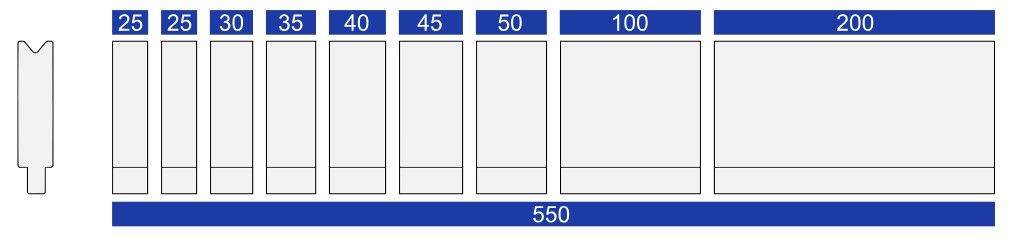

550 mm sectioned / segmented set (for dies: 25 mm + 25 mm + 30 mm + 35 mm + 40 mm + 45 mm + 50 mm + 100 mm + 200 mm)
Toolcells modifications (buttons, sections 480 / 625 mm)
Special lengths calculated based on customer’s request: calculated as price for solid piece + additional prices for cut.
Key features:
- High quality European materials C45/Cr42Mo4
- Working surfaces for bending with 55-60 HRC / 52-58 HRC
- Professional induction hardening of wear places and areas
- High precision grinding
- Guaranteed replacement to previous supplied pieces
- Fast delivery.
- Big variety of standard tools and custom manufacturing
Available Products:
- Punches 78°, 26°
- Dies 78°, 60°, 30°
- Hemming flattening sets 20°
- Extension adapters.
- Holders with radius inserts till R50
- Bending tools for Z-bends.
- Adapters for use of tools of other press brake systems.
