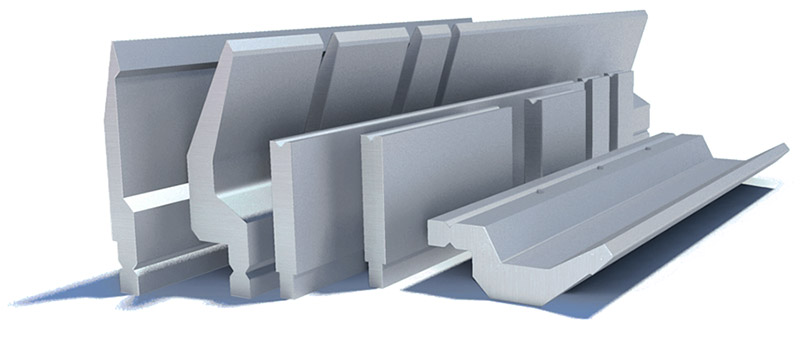

We offer all bending tooling solutions for hydraulic and electric press brakes for the clamping system Trumpf – WILA.
We supply punches, dies, adapters, holders with a good selection of standard types and possibility to make any special tools under request of the customer including the length of 6000-8000 mm in one piece
All tools use standard clamping pins or safety buttons.
Standard sizes:
Solid pieces 100, 200, 300, 500 mm.

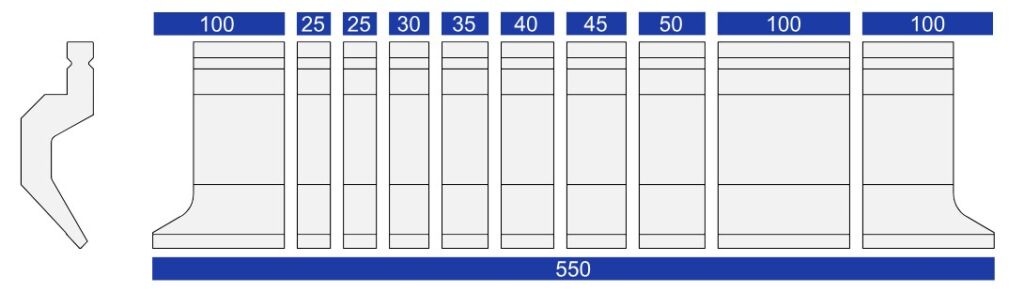

550 mm sectioned / segmented set (for punches: 100 mm horn left + 25 mm + 25 mm + 30 mm + 35 mm + 40 mm + 45 mm + 50 mm + 100 mm + 100 mm horn right)

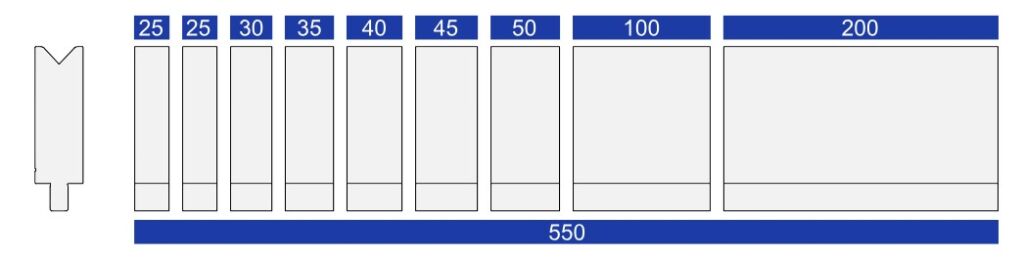

550 mm sectioned / segmented set (for dies: 25 mm + 25 mm + 30 mm + 35 mm + 40 mm + 45 mm + 50 mm + 100 mm + 200 mm)
Key features:
- High quality European materials C45/Cr42Mo4
- Working surfaces for bending with 55-60 HRC / 52-58 HRC
- Professional induction hardening of wear places and areas
- High precision grinding
- Guaranteed replacement to previous supplied pieces
- Fast delivery
- Big variety of standard tools and custom manufacturing
Available Products:
- Punches 86°, 80°, 60°, 28°, 26°
- Dies 86°, 84°, 80°, 60°, 30°
- Hemming flattening sets 24° / 28°
- Extension adapters
- Holders with radius inserts till R50
- Bending tools for Z-bends
- Multi-V adjustable bending dies
- Adapters for use of tools of other press brake systems
